RV1 FORK DETAILS

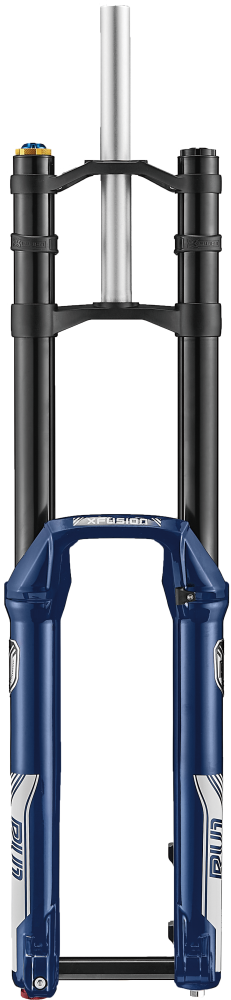

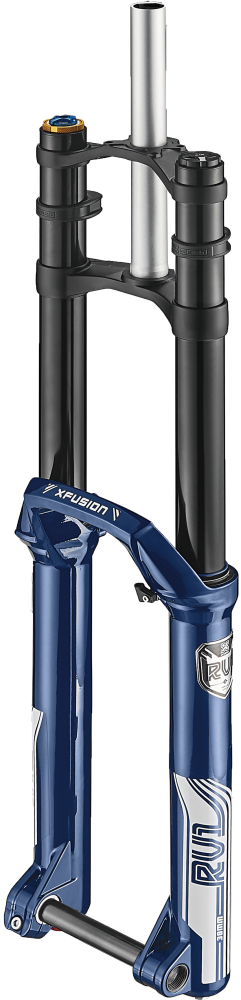

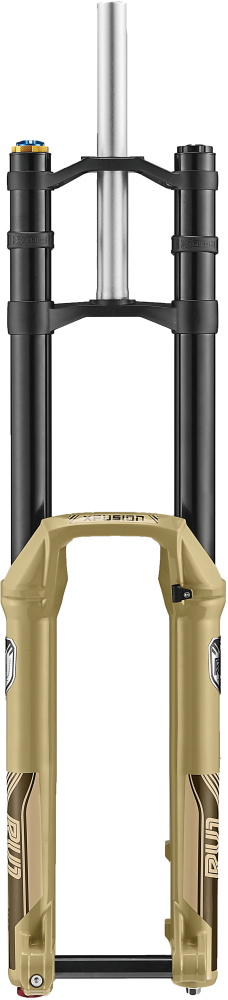

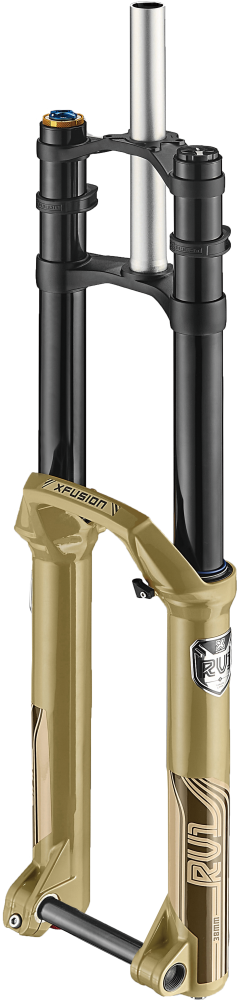

Introducing the new RV1 38, our most advanced downhill fork built for speed, control, and full-send riding. Over the past year, it's been tested and pushed to the limit by riders like Adolf Silva and Tom van Steenbergen, including on the biggest stage at Red Bull Rampage 2024. The RV1 features our Finecut HLR damper, a sealed IFP cartridge that delivers consistent damping through long descents and rough terrain. With 38mm stanchions, 200mm of air-sprung travel, and a stiff dual crown chassis built to handle both 29-inch and 27.5-inch wheels, it's made for riders who want confidence at top speed.
Neutra Valves help release internal pressure as you change elevation, while Nvolve wiper seals keep friction low and durability high. You've also got full adjustability with high and low-speed compression and rebound, plus offset options in 46 or 56mm to suit your style. Whether you're smashing laps in the bike park, racing against the clock, or charging down a freeride line, the RV1 keeps you locked in.
FEATURES
- The Finecut HLR Damper is IFP system and cartridge based damper which features high and low speed, independently adjustable compression and rebound damping adjustment.
- Neutra Valve pressure release valves to neutralize internal pressure providing the most consistent spring rate characteristics.
- Nvolve Wiper seals reducing seal drag and increasing durability
- Single Bolt 110x20mm Boost Axle
- 38MM frame guards
SPECIFICATIONS
- Weight: 6.5lbs/2950 grams
- Wheel Size: 29 inch / 27.5 inch
- Travel: 200mm
- Stanchion: 38mm Aluminum
- Spring: Air Spring
- Damper: Finecut HLR
- Adjustments: High and Low Speed Compression, Rebound
- Steerer: 1 1/8th Dual Crown
- Axle: Bolt-On 110x20mm Boost
- Features: Neutra Valves
- Colors: BLUE/SAND
- Axle to Crown: 610mm @ 200mm of travel
- Offset: 46mm/56mm
- Rotor Size: 203mm / 220mm(adaptor)
