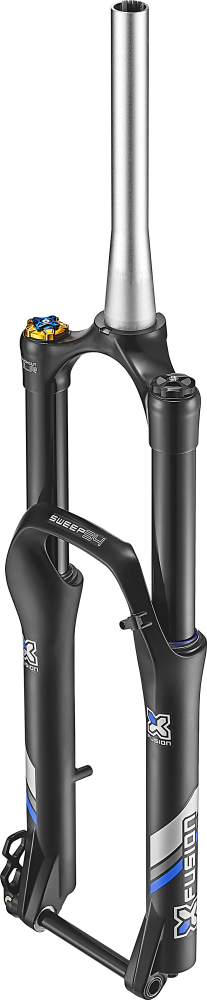

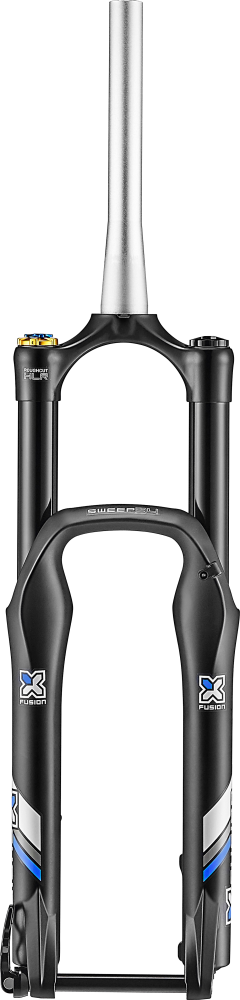

SWEEP BOOST HLR

AM / TRAIL(27.5“)
34MM
DETAIL

The Sweep Boost series is our 27.5 inch Boost version with wider clearance for 2.8 tire. It spawned from our Sweep series that was developed to bridge the gap between lightweight trail forks and high performance all-mountain forks using a 34mm chassis. The Sweep has been given a dedicated offset of 46mm that you will now find on all of our 27.5 inch forks.The Sweep Boost available with the Roughcut HLR/RCP bladder cartridge damping system in a svelte, but stout chassis allowing you to dominate the trail in any direction.

FEATURES

The Roughcut Damper is a fully bled bladder and cartridge based damper which features high and low speed, independently adjustable compression and rebound damping adjustment.

Nvolve Wiper seals reducing seal drag and increasing durability.

2.8” maximum tire compatibility on Boost version

SPECIFICATIONS

  • Weight: 4.4 pounds /2000 grams
  • Wheel Size: 27.5 inch
  • Travel: 160mm (ITA 120/140/160mm)
  • Stanchion: 34mm Aluminum
  • Spring: Air
  • Damper: Roughcut HLR
  • Adjustments: High and Low Speed Comp., Rebound, Air Spring
  • Steerer: Taper Standard
  • Axle: Thru Axle 110x15mm Boost
  • Axle to Crown: 551mm @ 160mm of travel
  • Offset: 46mm
  • Max Rotor Size: 180mm/203mm (XF adaptor only)
