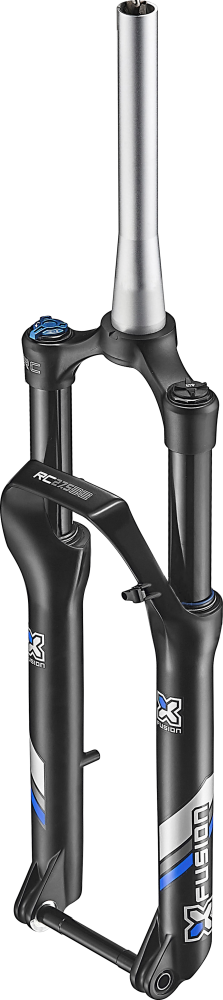

RC32 Boost


XFusion’s RC32 Boost series family is our all-never 32mm stanchion, 27.5 specific, XC and trail fork. It has up to 130mm’s of travel, remote compatible or lever-actuated lockout, and Boost 15mm axles. In addition to the performance features, the RC32 is offered with either 1 1/8” or tapered steer tube configurations.


  • The RC damper has low speed compression and near lockout firmness
  • Remote Lockout Capable


  • Weight: 4.1 pounds/1900 grams
  • Wheel Size: 27.5
  • Travel: 130mm (ITA 80/100/120/130mm)
  • Stanchion: 32mm Aluminum
  • Spring: Air
  • Damper: RC Damper
  • Adjustments: Compression(open to firm), Rebound, Air Spring
  • Steerer: Taper Standard
  • Axle: Thru Axle 110x15mm Boost
  • Colors: Flat Black
  • Axle to Crown: 510mm @ 120mm of travel
  • Offset:46mm
  • Max Rotor Size: 180mm
