AM / TRAIL(26“)

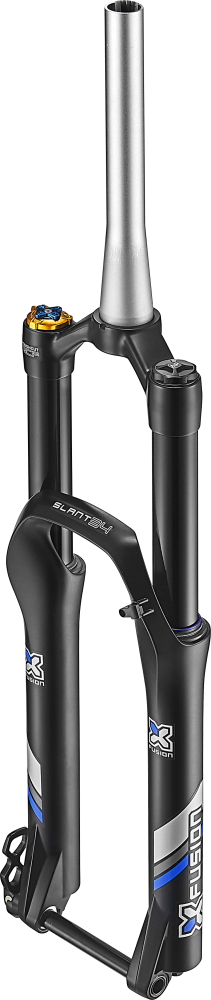

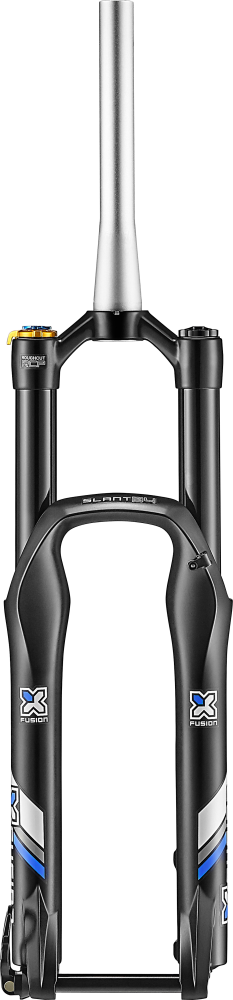

The Slant series was developed to bridge the gap between lightweight trail forks and high performance all-mountain forks. At XFusion we have taken note that not only suspension products have been progressing over the last few years, but the rider has as well. You all are fitter, faster, stronger and are looking for a product to match. The 34mm stanchion tube chassis provides the perfect balance between weight and strength in the trail and all-mountain category. The Slant now available with the Roughcut HLR/RCP bladder cartridge damping system in a svelte, but stout chassis allowing you to dominate the trail in any direction.


The Roughcut Damper is a fully bled bladder and cartridge based damper which features high and low speed, independently adjustable compression and rebound damping adjustment.

Nvolve Wiper seals reducing seal drag and increasing durability.


  • Weight: 4.2pounds /1900 grams
  • Wheel Size: 26 inch
  • Travel: 160mm (ITA 120/140/160mm)
  • Stanchion: 34mm Aluminum
  • Spring: Air
  • Damper: Roughcut RCP
  • Adjustments: 3 Position Platform Low Speed Comp., Rebound, Air Spring
  • Steerer: Taper Stardard
  • Axle: Lock-X 15mm
  • Color: Flat Black
  • Axle to Crown: 545mm @ 160mm
  • Offset: 40mm
  • Max Rotor Size:180mm/203mm (XF adaptor only)
