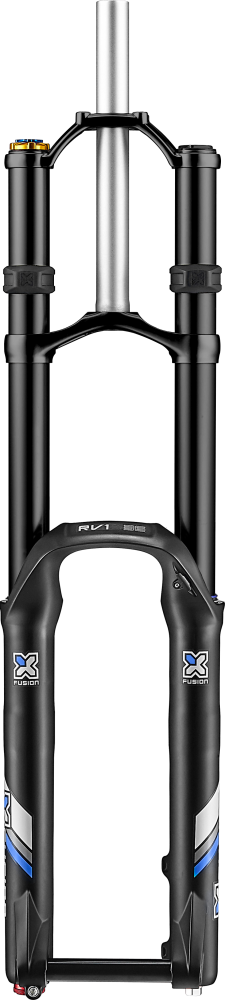

RV-1 HLR

DOWNHILL / FREERIDE (27.5")
36MM
DETAIL

FEATURES


  • The HLR damper is a twin-tube, cartridge based damper which features high and low speed, independently adjustable compression and rebound damping adjustment.
  • Carbon fork guards protecting the magnesium lower legs.
  • Neutra Valve pressure release valves to neutralize internal pressure providing the most consistent spring rate characteristics.
  • Nvolve Wiper seals reducing seal drag and increasing durability
  • Single Bolt 20mm Pinch Axle
  • Optimized Dual Crowns for 26 and 27.5 inch wheels
  • Clip on frame guards

SPECIFICATIONS


  • Weight: 6.1lbs/2767 grams
  • Wheel Size: 26 inch or 27.5 inch
  • Travel: 200mm (ITA 180-200mm)
  • Stanchion: 36mm Aluminum
  • Spring: Coil
  • Damper: Roughcut HLR
  • Adjustments: High and Low Speed Compression, Rebound
  • Steerer: 1 1/8th Dual Crown
  • Axle: Bolt-On 20mm
  • Features: Neutra Valves, Fork Guards
  • Colors: Matte Black, Flat Black
  • Axle to Crown: 579mm @ 200mm of travel
  • Offset: 46mm
  • Rotor Size: 180mm / 203mm(XF adaptor only)

DOWNLOADS


Owners Manual
